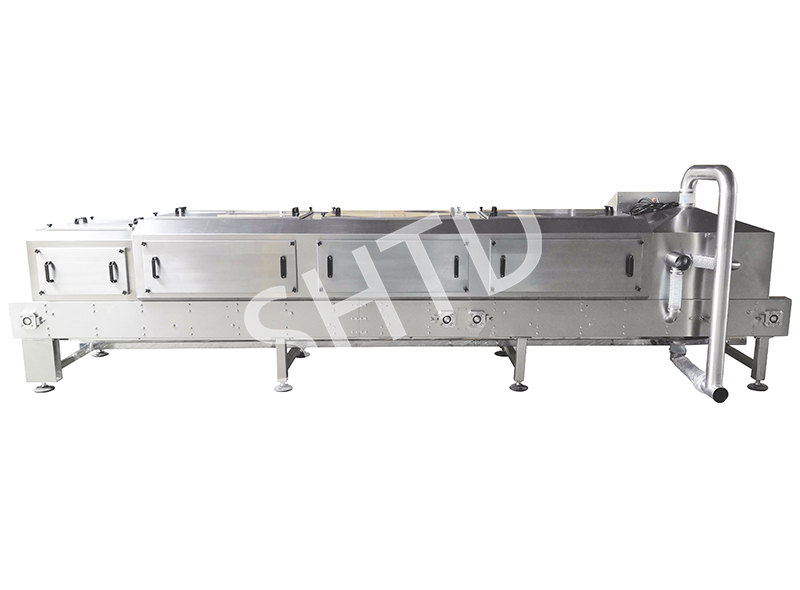

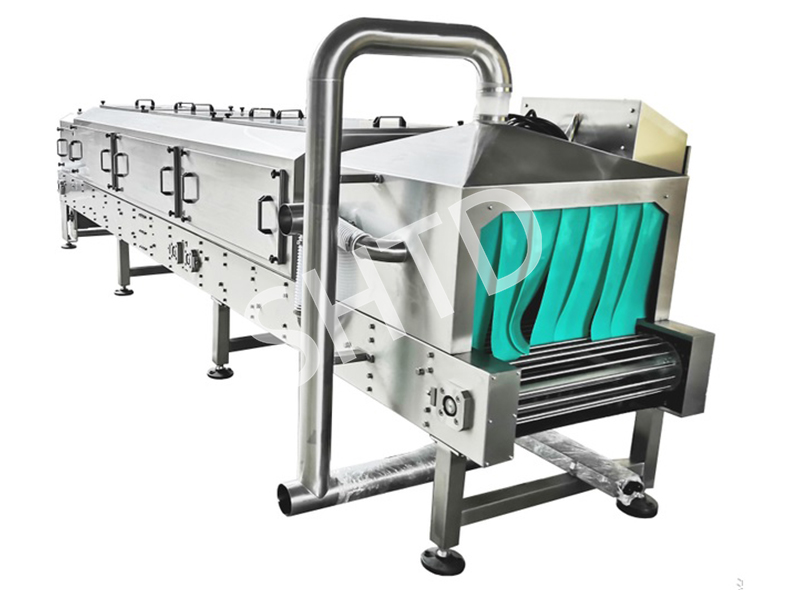

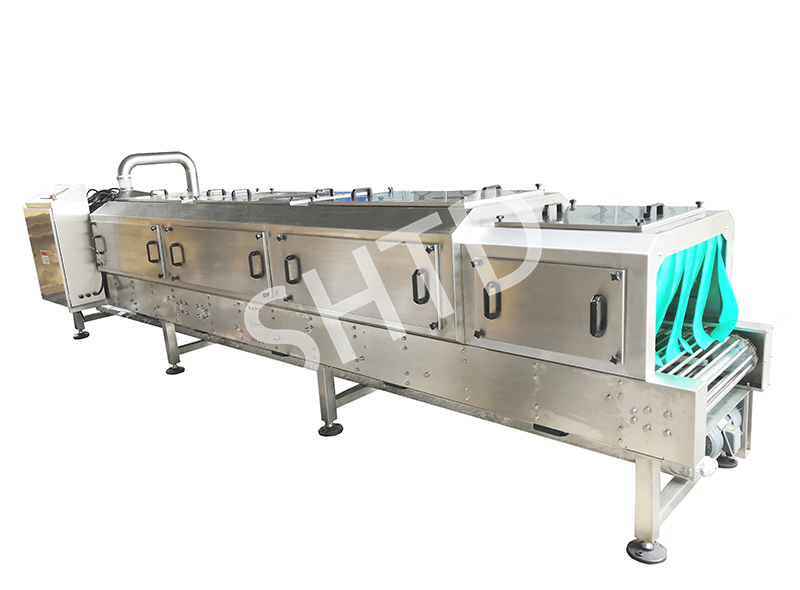

Bag sterilizing machine
1. The machine is composed of five sections, the 1st section is blowing and cleaning dust, the 2nd,
3rd and 4th sections are ultraviolet lamp sterilization, the 5th section is transition.
2. The purge section is composed of eight hair dryers, three up and down, one left and right,
randomly equipped with snail booster hair dryer (1.1kw).
3. Each section of the sterilization section by eight quartz glass ultraviolet sterilization lamp
irradiation, each section up and down three, about each one, up and down the stainless steel
cover plate can be.
4. Easily removed, easy to maintain.
5. Through the stainless steel installed on the stainless steel chain of the stainless steel strip to
drive the bag to walk smoothly, composed of two kinds of components, the middle dislocation device,
not easy to break the bag, ensure that each part of the ultraviolet radiation can be exposed to.
6. The main body of the machine is stainless steel, drive shaft carbon steel electroplating.
Sterilize the surface of big bag products, good performance for the entrance of Decontaminated workshop.
Fully stainless steel structure,Some transmission parts electroplated steel.
Linear speed: 8m/min
Power supply: 3P AC208-415V 50/60Hz
Total power: 1.23KW
Blower power: 7.5kw
Total weight: as per actual
Overall dimension: as per drawing
